Best Diode Laser Engravers (October 2026)
Diode lasers are the cheapest way into laser engraving and the strongest now cut 10 to 20 mm of wood. They cannot cut clear or blue acrylic or metal, and optical power, not the electrical figure on the box, is what decides speed.
Top picks
How we rank: by our own scores for power, speed, ease of use, safety and value, from the maker's published specs and independent tests where they exist. Some links earn us a commission (for example TwoTrees, SainSmart, Gweike and Amazon). That never changes a score or the order of a list (disclosure).
The 8 best, ranked
from $639 at Creality, checked Oct 22
- Power 40 W optical
- Work area 400 × 415 mm
- Form Open frame
- Air assist Built in
Best for: Makers who cut a lot of plywood and hardwood and want the most diode power per dollar on an open frame
Why we like it
- 40W optical output for $639, a lot of diode power for the money
- Adjustable beam with a finer 22W mode for detail work
- Built-in air assist pump with airflow monitoring
Watch out for
- Open frame: a 40W diode makes a lot of smoke and needs goggles, ventilation and a fire-safe space
- Manual focus with a focus block, no autofocus or camera
from $1,699 at xTool, checked Oct 22
- Power 40 W optical
- Work area 498 × 319 mm
- Form Enclosed
- Air assist Included
Best for: Hobbyists and small sellers who want a powerful diode cutter for wood and dark acrylic that is safe to run in a shared space
Why we like it
- Class 1 enclosure means no safety glasses or laser curtain for normal use at home
- 40W optical diode cuts 15 mm plywood or black acrylic in a single pass
- Large 498 x 319 mm work area plus a passthrough for long boards
Watch out for
- No camera, so you place jobs with the red-dot pointer instead of a live preview
- Cannot cut clear or blue acrylic, and bare metal needs the optional IR module
Full review and specs · Compare with SainSmart Genmitsu L8 20W
from $699 at SainSmart, checked Oct 22
- Power 20 W optical
- Work area 400 × 400 mm
- Form Enclosed
- Air assist Included
Best for: Home users who want a 20W diode in a real Class 1 enclosure with camera and air assist in the box
Why we like it
- Class 1 enclosure with door interlock, flame sensor, tilt stop, e-stop and key switch
- Ships pre-assembled with air pump, honeycomb and a LightBurn-compatible camera
- 40,000 mm/min rated speed is fast for a diode
Watch out for
- Manual focus with gauge blocks; one owner found the supplied gauges did not match the manual
- No published machine weight, and the box is a large 715 x 621 mm
from $499 at xTool, checked Oct 22
- Power 10 W optical
- Work area 426 × 320 mm
- Form Enclosed
- Air assist Built in
Best for: Crafters and families who want a safe, camera-guided enclosed laser for a shared room, and sticker or decal makers who will add the color printer
Why we like it
- Class 1 enclosure with lid and baseplate interlocks and flame detection, so it suits a shared craft room
- Dual cameras, autofocus and thickness measurement: place the material, close the lid and it lines the job up
- Optional CMYK inkjet with true black (1200 x 1200 dpi) makes it a print then cut machine for stickers, decals and puzzles
Watch out for
- Only 26 mm of material height with the baseplate fitted, and no riser base, honeycomb or conveyor support
- No blade or pen: the M1 Ultra's blade cutting for vinyl and fabric is gone
Full review and specs · Compare with Creality Falcon2 Pro 60W
from $1,899 at Creality, checked Oct 22
- Power 60 W optical
- Work area 400 × 400 mm
- Form Enclosed
- Air assist Included
Best for: Makers and small shops who mostly cut thick wood and dark acrylic and want that power in a Class 1 box rather than an open frame
Why we like it
- 60W optical diode (twelve 5.5W emitters combined) cuts thick softwood: Maker Hacks cut 19 mm plywood in a single pass
- Large 400 x 400 mm bed for an enclosed diode machine
- Class 1 enclosure with flame, airflow and dirty-lens monitoring, tilt stop and key lock
Watch out for
- No autofocus: you set focus with a block, and Maker Hacks found the head sagged once the block was removed
- Arrives flat-packed, so you assemble the enclosure frame and panels yourself, despite FAQ copy calling it fully pre-assembled
from $549 at Creality, checked Oct 22
- Power 22 W optical
- Work area 400 × 415 mm
- Form Open frame
- Air assist Built in
Best for: Hobbyists who want solid wood and dark acrylic cutting on an open frame with air assist already built in
Why we like it
- Built-in air assist pump, with airflow set by a knob or from LightBurn
- Large 400 x 415 mm bed for an open-frame diode
- Real 22W optical output from four combined diodes
Watch out for
- The Falcon2 40W on the same frame currently costs only $90 more
- Manual focus with a stepped focus block, no autofocus
Full review and specs · Compare with Creality Falcon A1 Pro 20W
from $879 at Creality, checked Oct 22
- Power 20 W optical
- Work area 358 × 268 mm
- Form Enclosed
- Air assist Included
Best for: Beginners and craft sellers who want an enclosed, app-connected 20W laser with autofocus and camera, and may add metal marking later
Why we like it
- Autofocus by camera and red-dot ranging, so no focus block for normal jobs
- Class 1 enclosure with dual flame detection that stops the job and alerts your phone, plus tilt stop and key lock
- Touchscreen, Wi-Fi app control and USB drive jobs, so it runs without a computer tethered to it
Watch out for
- The 'Dual-laser' name oversells the base listing: the 2W IR module is not included at $1,099 and costs $379 on its own
- $1,099 for 20W optical is steep: $400 more than the 20W Genmitsu L8, and $600 short of the 40W xTool S1

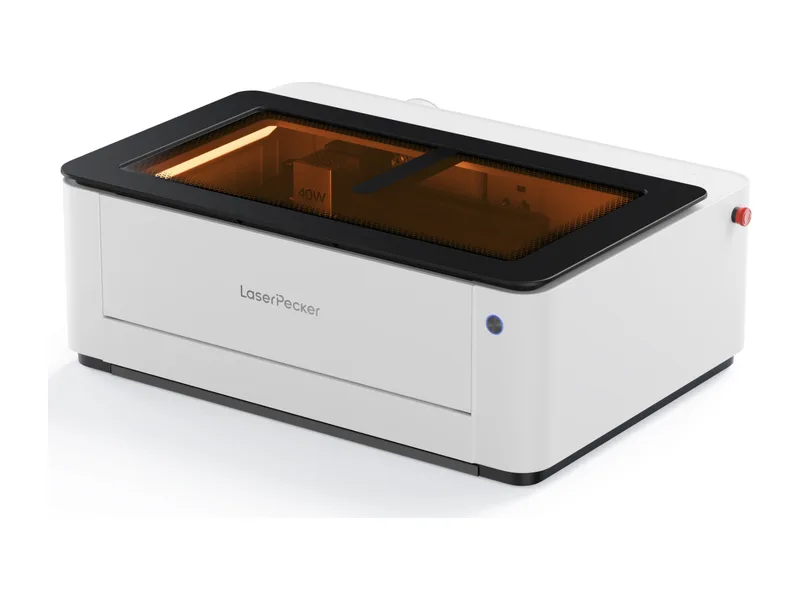

from $1,499 at LaserPecker, checked Oct 22
- Power 20 W optical
- Work area 500 × 305 mm
- Form Enclosed
- Air assist Included
Best for: Small businesses, classrooms and serious makers who want a large Class 1 enclosed diode laser now and plan to add a 40W cutting head or infrared metal marking later
Why we like it
- Tool-free swappable heads (20W, 40W and 60W diode plus a 2W 1064 nm infrared) let one enclosure move from fine engraving to thick cutting to metal marking
- Large 500 x 305 mm bed in a Class 1 enclosure, with a front door for loading as well as the top lid
- Claimed 1,000 mm/s with 10,000 mm/s² acceleration on dual Y-axis linear guides, quick for an enclosed diode
Watch out for
- The $1,499 base bundle has the 20W head; the 40W that most of LaserPecker's cutting claims refer to costs $300 more as a bundle, and the IR head another $599
- Only four slats and no honeycomb in the box; TechRadar and FauxHammer both found four were not enough
All 21 compared
| # | Laser | Type | Optical power | Work area | Price | Overall | Value | Safety |
|---|---|---|---|---|---|---|---|---|
| 1 | Creality Falcon2 40W | Diode laser | 40 W | 400 × 415 mm | $639 | 78 | 86 | 40 |
| 2 | xTool S1 40W | Diode laser | 40 W | 498 × 319 mm | $1,699 | 78 | 76 | 90 |
| 3 | SainSmart Genmitsu L8 20W | Diode laser | 20 W | 400 × 400 mm | $699 | 76 | 80 | 90 |
| 4 | xTool M2 | Diode laser | 10 W | 426 × 320 mm | $499 | 74 | 80 | 90 |
| 5 | Creality Falcon2 Pro 60W | Diode laser | 60 W | 400 × 400 mm | $1,899 | 74 | 68 | 88 |
| 6 | Creality Falcon2 22W | Diode laser | 22 W | 400 × 415 mm | $549 | 72 | 72 | 40 |
| 7 | Creality Falcon A1 Pro 20W | Diode laser | 20 W | 358 × 268 mm | $879 | 72 | 62 | 90 |
| 8 | LaserPecker LX2 | Diode laser | 20 W | 500 × 305 mm | $1,499 | 72 | 62 | 90 |
| 9 | AtomStack A40 Pro V2 | Diode laser | 48 W | 385 × 400 mm | $769 | 71 | 78 | 40 |
| 10 | AtomStack Atelier | Galvo diode laser | 12 W | 120 × 120 mm | $599 | 71 | 72 | 86 |
| 11 | AtomStack A70 Max | Diode laser | 70 W | 850 × 800 mm | $1,519 | 70 | 68 | 38 |
| 12 | Creality Falcon A1 10W | Diode laser | 10 W | 305 × 381 mm | $466 | 70 | 66 | 88 |
| 13 | AtomStack Glacier 90W / 120W | Diode laser | 90 W | 800 × 800 mm | $2,329 | 68 | 62 | 38 |
| 14 | Creality Falcon T1 20W Diode | Galvo diode laser | 20 W | 175 × 175 mm | $2,249 | 67 | 55 | 85 |
| 15 | Ortur Laser Master 3 | Diode laser | 10 W | 400 × 400 mm | $299.99 | 66 | 84 | 40 |
| 16 | AtomStack A24 Pro | Diode laser | 24 W | 365 × 305 mm | $459 | 66 | 76 | 40 |
| 17 | LONGER Ray5 20W | Diode laser | 20 W | 400 × 365 mm | $359.99 | 66 | 76 | 38 |
| 18 | Sculpfun S30 Pro Max | Diode laser | 20 W | 370 × 360 mm | $479.99 | 64 | 78 | 28 |
| 19 | TwoTrees TS2 10W | Diode laser | 10 W | 450 × 450 mm | $257 | 62 | 78 | 35 |
| 20 | Creality Falcon A1C 5W with AI Camera | Diode laser | 5 W | 150 × 150 mm | $299 | 62 | 74 | 86 |
| 21 | TwoTrees TTS-55 Pro | Diode laser | 5.5 W | 300 × 300 mm | $159 | 48 | 62 | 25 |
Frequently asked questions
What is the best diode laser engraver?
On our scores it is the Creality Falcon2 40W (78/100, from $639 at Creality, checked Oct 22). Makers who cut a lot of plywood and hardwood and want the most diode power per dollar on an open frame.
Do I need ventilation for a laser engraver?
Yes. Every laser on this list makes smoke and fumes. Vent it outside through a window kit or duct, or use a proper fume extractor, and never cut PVC or vinyl, which release chlorine gas.
Diode, CO2 or fiber?
Diode for affordable wood and leather work, CO2 for clear acrylic, thick wood and production speed, fiber for marking and engraving metal.
