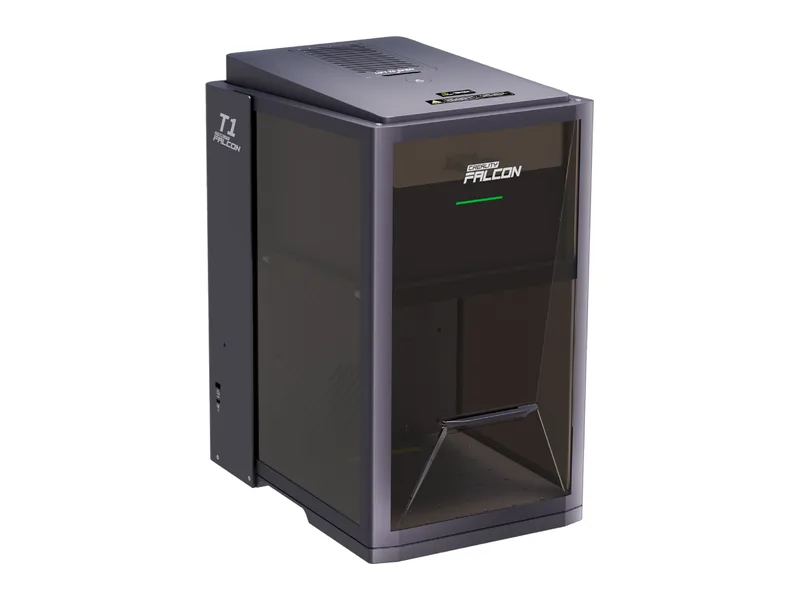

Creality Falcon T1 20W Diode
Small businesses that want one enclosed galvo platform for small-item personalization and plan to add fiber, MOPA or UV modules over time
from $2,249 at Creality, checked Oct 22
Image: Creality. Prices change often; the shop shows the current price.
Quick verdict
The Falcon T1 is Creality's modular galvo workstation: a roughly 25 kg Class 1 tower with a 175 x 175 mm field, camera, autofocus and five swappable laser modules. This record covers the $2,499 entry configuration with the 20W blue diode, which engraves wood, leather and coated metal at galvo speed and cuts thin stock, about 5 mm basswood in one pass by Creality's own settings. The case for the T1 is adding the 20W fiber, 60W MOPA or 5W UV module later. Bought only as a diode machine, it is expensive for what it cuts, and Tom's Hardware found the early software and support rough.
What you still need
Fume handling: the exhaust hose is in the box, but you need a window vent or the AP1 mini purifier ($239 alone, or the $2,699 Clean Kit). Add the modules you actually bought it for ($899 to $2,699 each), the TC1 conveyor for batches ($459, or the $2,799 Basic Kit), the RC2 rotary ($299, out of stock on 9 October 2026) or $139 flexible fixture, 445 nm safety glasses (plus 1064 nm glasses for fiber or MOPA) for open-lid conveyor and rotary work, and a fire extinguisherMaterial reality check
With the 20W diode it cuts thin wood, plywood, MDF, card, paper, EVA foam, leather and dark opaque acrylic, and engraves wood, bamboo, leather, slate, ceramics, dark glass, coated metal and stainless steel surfaces. It cannot cut clear acrylic, glass or metal; metal cutting needs the fiber (0.5 mm) or MOPA (1 mm) module in multiple passes. Creality's parameter table includes heat transfer vinyl settings: only use PU-based HTV and never laser PVC or vinyl.Better alternative if
if you only need a diode laser for wood and acrylic, the Falcon2 Pro 60W cuts far thicker stock on a 400 x 400 mm bed for $600 less: Creality Falcon2 Pro 60WScores
Scored on the same scale for every laser on this site. See all lasers ranked.
Specifications
| Laser type | Galvo diode laser |
|---|---|
| Form | Desktop galvo |
| Optical power | 20 W |
| Other modules | The T1 is modular: one laser module ships with the machine and four others swap in without tools. Sold separately on Creality's US store: 40W diode ($1,399), 20W fiber ($1,099), 5W UV ($2,599, needs its own F-theta lens) and 60W MOPA ($2,699, pre-order, listed for 20 October 2026) |
| Wavelength | 445 ± 15 nm (diode modules); 1064 ± 5 nm (fiber and MOPA); 355 ± 2 nm (UV) |
| Work area | 175 × 175 mm |
| Max speed | 10,000 mm/s (galvo, maker claim) |
| Cutting (maker claim) | 10 mm basswood in 2 passes, and 5 mm basswood or 3 mm dark opaque acrylic in 1 pass at 4 mm/s, per Creality's recommended parameters for the 20W diode (no setting is given for 15 mm) |
| Precision | ±0.01 mm positioning and ≤0.01 mm processing accuracy (maker claims) |
| Air assist | None |
| Camera | Yes |
| Autofocus | Yes |
| Rotary support | Yes |
| Safety | Class 1 (FDA) enclosure with lid-open stop, safety key, emergency stop, visual flame detection and airflow and temperature monitoring; not Class 1 in conveyor and rotary modes, which run with the lid open |
| Connectivity | USB-C, Wi-Fi |
| Software | Falcon Design Space, LightBurn (basic functions only, per Creality) |
| Weight | 24.82 kg |
| Price | from $2,249 at Creality, checked Oct 22 |
Pros and cons
Why we like it
- Swappable diode, fiber, MOPA and UV modules in one chassis, so the same machine can move from wood into metal marking, color marking and crystal engraving
- Galvo head rated at 10,000 mm/s: Tom's Hardware engraved a dog tag with the fiber module in about one second
- Camera positioning, autofocus and automatic recalibration after a module swap keep setup short
- Class 1 (FDA) enclosure with lid-open stop, safety key, emergency stop and flame detection
- Wi-Fi, USB-C, phone app and touchscreen control, with a motorized Z that clears objects up to about 150 mm tall
Watch out for
- $2,499 buys only the 20W diode module, an expensive way to get diode cutting, and each extra module costs $899 to $2,699
- Small 175 x 175 mm field, and galvo cuts get more angled toward the edges of the field, which matters for interlocking parts
- Tom's Hardware's unit felt like a beta, with software glitches and no US-based technical support (Creality says that unit may have been pre-production)
- Conveyor and rotary modes run with the lid open and are not Class 1, and no safety glasses are included
- Swapping to UV means changing the field lens and recalibrating (about 30 minutes in Tom's test), the MOPA module is still on pre-order, and the RC2 rotary was out of stock on 9 October 2026
Compare with
Frequently asked questions
What materials can the Creality Falcon T1 20W Diode cut and engrave?
With the 20W diode it cuts thin wood, plywood, MDF, card, paper, EVA foam, leather and dark opaque acrylic, and engraves wood, bamboo, leather, slate, ceramics, dark glass, coated metal and stainless steel surfaces. It cannot cut clear acrylic, glass or metal; metal cutting needs the fiber (0.5 mm) or MOPA (1 mm) module in multiple passes. Creality's parameter table includes heat transfer vinyl settings: only use PU-based HTV and never laser PVC or vinyl.
What else do I need to buy with the Creality Falcon T1 20W Diode?
Fume handling: the exhaust hose is in the box, but you need a window vent or the AP1 mini purifier ($239 alone, or the $2,699 Clean Kit). Add the modules you actually bought it for ($899 to $2,699 each), the TC1 conveyor for batches ($459, or the $2,799 Basic Kit), the RC2 rotary ($299, out of stock on 9 October 2026) or $139 flexible fixture, 445 nm safety glasses (plus 1064 nm glasses for fiber or MOPA) for open-lid conveyor and rotary work, and a fire extinguisher
How much does the Creality Falcon T1 20W Diode cost?
From $2,249 at Creality, checked Oct 22.
How we rank: by our own scores for power, speed, ease of use, safety and value, from the maker's published specs and independent tests where they exist. Some links earn us a commission (for example TwoTrees, SainSmart, Gweike and Amazon). That never changes a score or the order of a list (disclosure).
Sources
- Creality Falcon US store: Falcon T1 product page (spec table, box contents, FAQ)
- Creality Falcon US store: Falcon T1 product JSON (prices per module configuration)
- Creality Falcon US store: Falcon T1 Laser Modules (separate module prices, MOPA pre-order date)
- Creality Falcon US store: Falcon T1 Basic Kit
- Creality Falcon T1 Quick Start Guide (PDF, parameter table and packing list)
- Creality: recommended parameters for the T1 (XLSX)
- Creality Wiki: Falcon T1 FAQ (Chinese)
- Creality Falcon blog: Everything you need to know about the Falcon T1
- Creality Falcon US store: RC2 Rotary Kit
- Tom's Hardware: Creality Falcon T1 review
- CNX Software: Creality Falcon T1 review with 20W fiber and 40W diode modules
