Gweike M3 Ultra 6-in-1 Laser Welder and CNC Cutter
Fabrication shops and makers who want to cut sheet up to 1380 x 920 mm, weld, and cut wood and acrylic on one system, and have the floor space, power and gas for it
$13,999 $13,049 at Gweike with code YIELD
Code YIELD takes $950 off at checkout. The Gweike button opens the official Gweike cart with the code already applied; you buy directly from Gweike. With Gweike's air compressor in the same order, code YIELD2 takes $1,300 off instead.

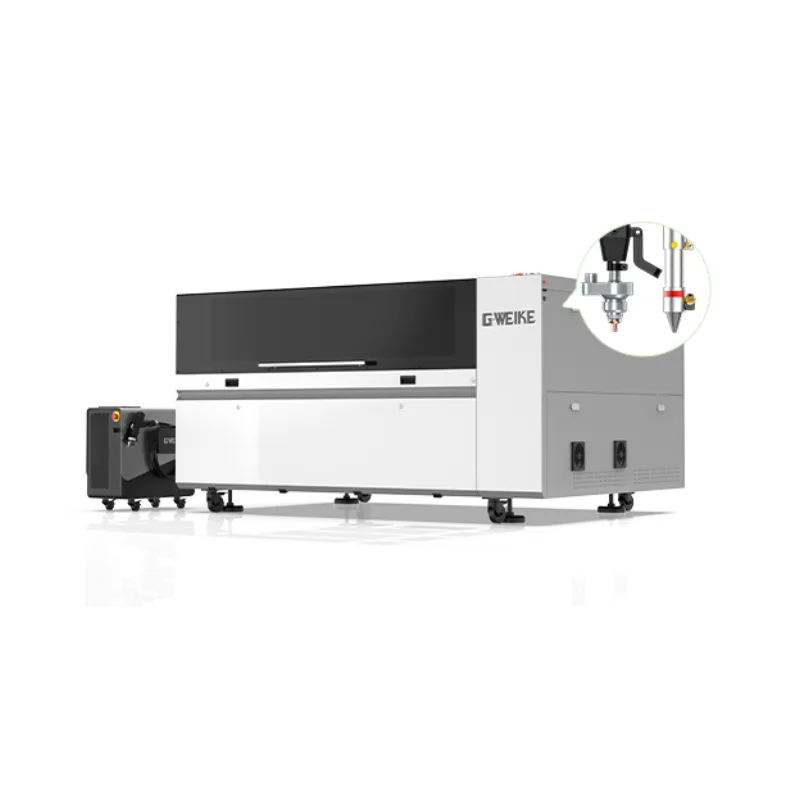

Image: Gweike. Prices change often; the shop shows the current price.
Quick verdict
The Gweike M3 Ultra is the big version of the M3: the same 1200W fiber laser welder, whose source and head also mount on an enclosed CNC cutting bed, but with a 1380 x 920 mm bed, a 130W CO2 laser for non-metals and a faster 800 mm/s gantry. At $13,999 on Gweike's US store it costs $2,500 more than the M3 Pro for more than three times the bed area, and about $2,000 less than the xTool MetalFab welder and cutter, whose bed is 610 x 610 mm. Gweike claims CNC cuts up to 10 mm in metal and 25 mm with the CO2 laser, handheld welding from 0.2 to 5 mm and ±0.02 mm repeatability. It is a 610 kg shop machine that needs a forklift, a hard-wired 220V supply and bottled nitrogen and oxygen, and Gweike publishes less cutting and safety detail than xTool does.
What you still need
A forklift for unloading, a door wide enough for a 1780 mm deep machine, and floor space: Gweike's manual asks for at least 1 m of clearance on every side. We run our M3 Ultra with about 20 cm to the walls; what you really need is room to open the door, feed sheet front and back and reach the service panels; an electrician to hard-wire 210 to 240V single phase (the FAQ says about 5 kW with a 32A breaker for the laser and 16A for the bed, the manual asks for at least 63A total, two switches of at least 30A and 6 sq mm cable); nitrogen at 2.0 MPa and oxygen at 0.8 MPa with regulators, or a compressor for thin stainless and aluminum; 7 L of distilled water (plus antifreeze in winter) for the CO2 chiller; sand, gravel or firebricks for the slag cart; ducting for the exhaust fan; a Windows PC; filler wire; goggles and gloves (the manual lists them as buyer supplied); and screens for handheld weldingMaterial reality check
Gweike's material chart lists stainless steel, carbon steel, alloy steel, aluminum, copper, brass, bronze, titanium, silver, and zinc and magnesium alloys for fiber cutting, welding and cleaning, with a 10 mm CNC cut figure that is not tied to a metal. Its FAQ recommends oxygen for carbon steel, nitrogen for stainless over 4 mm and compressed air for thinner stainless and aluminum. The 130W CO2 laser cuts wood, acrylic, MDF, leather, fabric and paper, with up to 25 mm cutting claimed. Never process PVC or vinyl.Better alternative if
your parts fit in 620 x 620 mm and you would rather save $2,500 and about 300 kg of machine: Gweike M3 Pro 6-in-1 Laser Welder and CNC CutterScores
Scored on the same scale for every laser on this site. See all lasers ranked.
Specifications
| Laser type | Fiber laser |
|---|---|
| Form | Enclosed |
| Optical power | 1200 W |
| Other modules | 130W CO2 laser in the cutting bed for cutting and engraving wood, acrylic and other non-metals, plus the 1200W handheld gun for welding, handheld cutting and cleaning; the fiber head moves between the gun and the CNC bed. The smaller M3 Pro (620 x 620 mm bed, 80W CO2) is $11,499 |
| Wavelength | 1080 nm (±10 nm) fiber; CO2 wavelength not stated |
| Work area | 1380 × 920 mm |
| Max speed | 800 mm/s max working speed and 1G acceleration (maker claims) |
| Cutting (maker claim) | CNC: up to 10 mm with the 1200W fiber source and up to 25 mm with the 130W CO2 laser; Gweike does not say which metal or non-metal these apply to. Handheld: welding 0.2 to 5 mm and, per the welder's own page, cutting 0.5 to 3 mm (maker claims) |
| Precision | ±0.02 mm repeat positioning accuracy (maker claim) |
| Air assist | Built in |
| Camera | No |
| Autofocus | Yes |
| Rotary support | Yes |
| Safety | The CNC bed is a closed cabinet with a door switch interlock, key switch and emergency stop; Gweike lists the system as Class 4 and does not rate the viewing window. The handheld welder is an open Class 4 beam with its own key, E-stop and ground clamp, and Gweike's manual lists goggles and gloves among things the buyer prepares |
| Connectivity | Ethernet |
| Software | Gweike CNC cutting software for Windows (not named on the product page; installed from the supplied USB drive), Touchscreen with material presets on the welder |
| Weight | 610 kg |
| Price | $13,999 $13,049 at Gweike with code YIELD |
Pros and cons
Why we like it
- One 1200W fiber source welds, cleans, cuts by hand and drives an enclosed 1380 x 920 mm CNC bed
- A 130W CO2 laser in the same bed cuts wood and acrylic, which the xTool MetalFab does not offer
- $13,999 is about $2,000 less than the xTool MetalFab welder and cutter, with more than three times its bed area
- Faster gantry than the M3 Pro: 800 mm/s and 1G acceleration against 600 mm/s and 0.6G (maker claims)
- 2-year machine warranty, 1 year on the laser source and CO2 tube
Watch out for
- 610 kg and 2185 x 1780 mm: it arrives by truck and needs a forklift and a wide door
- Hard-wired 220V with conflicting figures: about 5 kW on 32A and 16A breakers in the FAQ, at least 63A total in the manual
- Gweike does not say which metal the 10 mm figure is for, and publishes no window rating, camera or software name
- Handheld welding is an open Class 4 beam, and eye protection is not clearly included
Compare with
Gweike M3 Pro 6-in-1 Laser Welder and CNC Cutter
Score 71/100 · $11,499 $10,549 at Gweike with code YIELD
Compare side by side
xTool MetalFab 1200W Laser Welder and CNC Cutter
Score 75/100 · from $15,999 at xTool, checked Oct 22
Compare side by side
Gweike MCore 400W Fiber and 80W CO2 Desktop Laser Cutter
Score 68/100 · from $6,999 at Gweike (pre-order), checked Oct 22
Compare side by side
OMTech FC-22 1500W Enclosed Fiber Laser Cutter
Score 68/100 · from $21,000 at OMTech, checked Oct 22
Compare side by sideFrequently asked questions
What materials can the Gweike M3 Ultra 6-in-1 Laser Welder and CNC Cutter cut and engrave?
Gweike's material chart lists stainless steel, carbon steel, alloy steel, aluminum, copper, brass, bronze, titanium, silver, and zinc and magnesium alloys for fiber cutting, welding and cleaning, with a 10 mm CNC cut figure that is not tied to a metal. Its FAQ recommends oxygen for carbon steel, nitrogen for stainless over 4 mm and compressed air for thinner stainless and aluminum. The 130W CO2 laser cuts wood, acrylic, MDF, leather, fabric and paper, with up to 25 mm cutting claimed. Never process PVC or vinyl.
What else do I need to buy with the Gweike M3 Ultra 6-in-1 Laser Welder and CNC Cutter?
A forklift for unloading, a door wide enough for a 1780 mm deep machine, and floor space: Gweike's manual asks for at least 1 m of clearance on every side. We run our M3 Ultra with about 20 cm to the walls; what you really need is room to open the door, feed sheet front and back and reach the service panels; an electrician to hard-wire 210 to 240V single phase (the FAQ says about 5 kW with a 32A breaker for the laser and 16A for the bed, the manual asks for at least 63A total, two switches of at least 30A and 6 sq mm cable); nitrogen at 2.0 MPa and oxygen at 0.8 MPa with regulators, or a compressor for thin stainless and aluminum; 7 L of distilled water (plus antifreeze in winter) for the CO2 chiller; sand, gravel or firebricks for the slag cart; ducting for the exhaust fan; a Windows PC; filler wire; goggles and gloves (the manual lists them as buyer supplied); and screens for handheld welding
How much does the Gweike M3 Ultra 6-in-1 Laser Welder and CNC Cutter cost?
$13,049 at Gweike with our code YIELD, $950 off the $13,999 store price.
