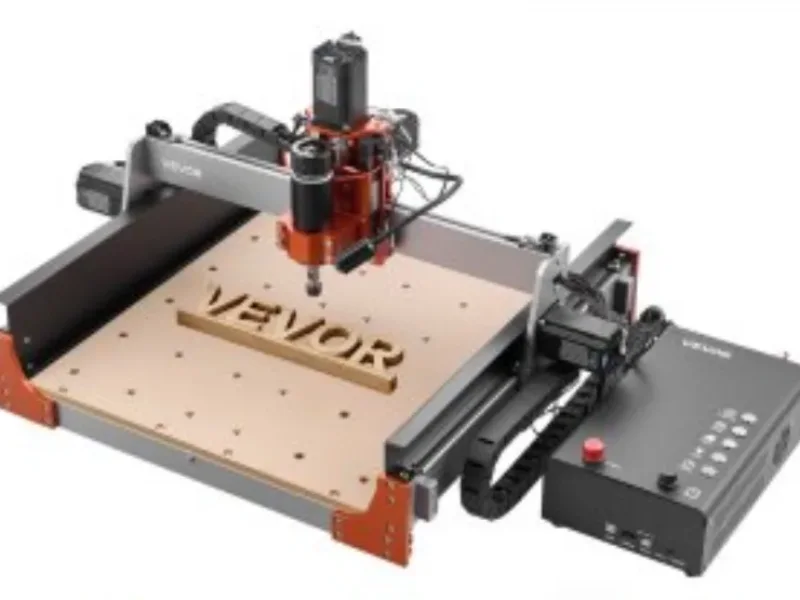

VEVOR 4040 CNC Router (500W, Ball Screw)
VEVOR
Best for: Hobbyists seeking linear guides and ball screws in a 400 x 400mm machine, with a modest spindle and a PC-based workflow
Typical starting price
$680Editorial baseline for this machine
Overall score
Best current buying path
Where to buy
VEVOR: $679.90 · checked Oct 22
- Shipping varies by retailer
- Check manufacturer site for availability
Affiliate link. We may earn a commission at no extra cost.
Quick verdict
This VEVOR 4040 version combines a 6061 aluminum frame, linear guides, ball screws and a 500W DC spindle. Its stated working range is 400 x 400 x 95mm, with a 22.8kg net weight and a 12000 RPM spindle limit. Choose cutters and feeds for that speed range rather than assuming a trim-router cutting recipe will transfer directly. GRBL software such as Candle handles spindle jobs; LightBurn and LaserGRBL are relevant to an optional laser. The published manual contains unresolved placeholder text, so check the supplied instructions and actual hardware carefully.
Who this fits best
Hobbyists seeking linear guides and ball screws in a 400 x 400mm machine, with a modest spindle and a PC-based workflow
Buy this if
Hobbyists seeking linear guides and ball screws in a 400 x 400mm machine, with a modest spindle and a PC-based workflow. Linear rails and ball screws instead of V-wheels and lead screws at this price.
Skip this if
The 500W spindle is limited to 12000 RPM, so cutter size, material and feed must suit that range, and documentation and instructions are a common complaint in buyer reviews.
What else you still need
Suitable carbide cutters, matching collets, workholding and dust collection; check what the selected package already supplies. A compatible 65mm router is an optional upgrade, and its weight, mounting and power arrangements need to suit the machine.
Material reality check
Wood, MDF, plywood, acrylic and plastics are its real job. VEVOR says it can mill 1/4 in aluminium with 0.1 to 0.3 mm passes and lubricant, which is possible but slow on a 12,000 RPM, 500W spindle. Steel is out.
Better alternative if...
compare the larger PROVerXL 6050 Plus if work area matters more; check the current complete-package price and the documentation for the exact revision. See Genmitsu PROVerXL 6050 Plus
Where it wins
- Linear rails and ball screws instead of V-wheels and lead screws at this price
- 95mm of stated Z working range; usable stock height also depends on tooling and workholding
- 400 x 400 mm bed with an optional Y extension to 800 mm
- Standard 52 mm spindle mount plus a 65 mm option, so a trim router upgrade is possible
- Maker-listed 22.8kg net machine weight
Where it falls short
- The 500W spindle is limited to 12000 RPM, so cutter size, material and feed must suit that range
- The published manual retains unresolved placeholder text in electrical and support instructions
- PC-based GRBL operation needs an appropriate CAM workflow and USB connection
- Y extension, rotary axis and laser are all extra-cost add-ons
Specifications
400 × 400 mm
1600 cm²
500W
500W DC spindle, ER11 collet
GRBL 1.1 control box, USB, e-stop
22.8 kg
$680
mid range
