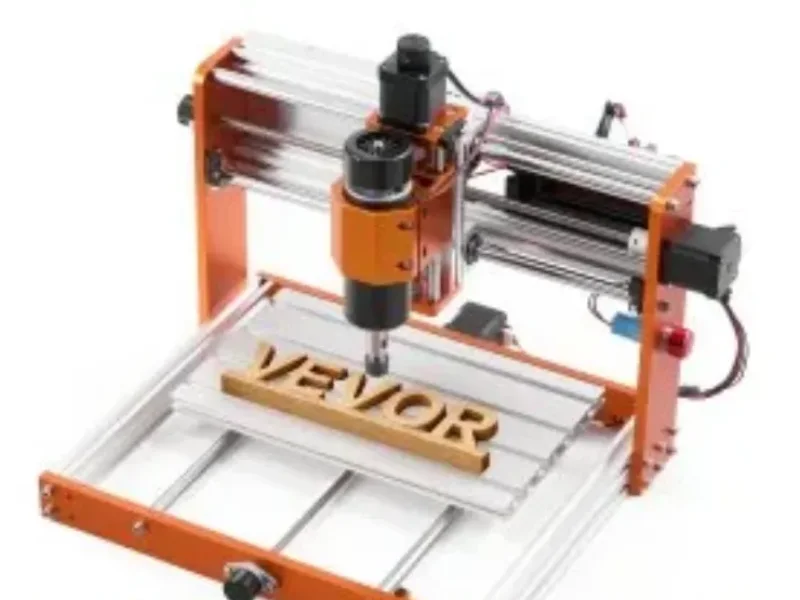

VEVOR 3018 Pro Max CNC Router (500W)
VEVOR
Best for: Small-parts hobbyists who want a 3018 footprint with a real spindle, limit switches and offline control
Typical starting price
$323Editorial baseline for this machine
Overall score
Best current buying path
Where to buy
VEVOR: $322.90 · checked Oct 2
- Shipping varies by retailer
- Check manufacturer site for availability
Affiliate link. We may earn a commission at no extra cost.
Quick verdict
This is VEVOR's take on the 3018 Pro Max layout: an aluminium frame with 12 mm and 10 mm round rails, lead screws, an aluminium T-slot bed and a 500W DC spindle at 12,000 RPM. Work area is 300 x 180 x 80 mm and the machine weighs 11.1 kg. The 500W spindle and tall Z make it far more capable than a 60W or 120W 3018, and it comes with six limit switches, an e-stop and a 1.8 in offline controller. The frame is still a 3018 on round rods though, so the spindle has more power than the structure can fully use. For small wood, acrylic and PCB work it is a solid budget pick.
Who this fits best
Small-parts hobbyists who want a 3018 footprint with a real spindle, limit switches and offline control
Buy this if
Small-parts hobbyists who want a 3018 footprint with a real spindle, limit switches and offline control. 500W spindle is a big step up from the usual 3018 775 motor.
Skip this if
Still a 300 x 180 mm work area, and round-rod guides and lead screws limit rigidity no matter how strong the spindle is.
What else you still need
A wider set of ER11 collets and carbide end mills, low-profile clamps for the T-slot bed, dust extraction, and the Y extension kit if 180 mm is too short.
Material reality check
Wood, MDF, acrylic, plastics, PCB blanks and soft brass or aluminium engraving with light passes. The round-rod frame, not the spindle, will limit how hard you can push in hardwood or aluminium.
Better alternative if...
you want a much bigger 400 x 400 mm bed for a little more money and can live with a 300W spindle. See Genmitsu 4040 Reno
Where it wins
- 500W spindle is a big step up from the usual 3018 775 motor
- 80 mm of Z travel, unusual for a 3018
- Limit switches on all axes, e-stop and offline controller included
- Aluminium T-slot bed instead of MDF
- Y axis can be extended to 400 mm with the optional kit
Where it falls short
- Still a 300 x 180 mm work area
- Round-rod guides and lead screws limit rigidity no matter how strong the spindle is
- VEVOR lists only 4,000 mm/min maximum X/Y speed
- Extension kit and laser are extra
- Thin documentation, as with other VEVOR routers
Specifications
300 × 180 mm
540 cm²
500W
500W DC spindle, ER11 collet chuck
GRBL 1.1 board, USB, 1.8 in offline controller, 6 limit switches, e-stop
11.1 kg
$323
budget
Full specification table
Relative to database
Benchmark Scores
Overall Score
Composite across 5 dimensions
Community Sentiment
We have not summarised owner feedback for the VEVOR 3018 Pro Max CNC Router (500W) yet, so this section is intentionally left without claims. Check the sources for current owner discussions.
Community sentiment is aggregated from forums, Reddit, Discord, and manufacturer communities. Individual experiences may vary.
