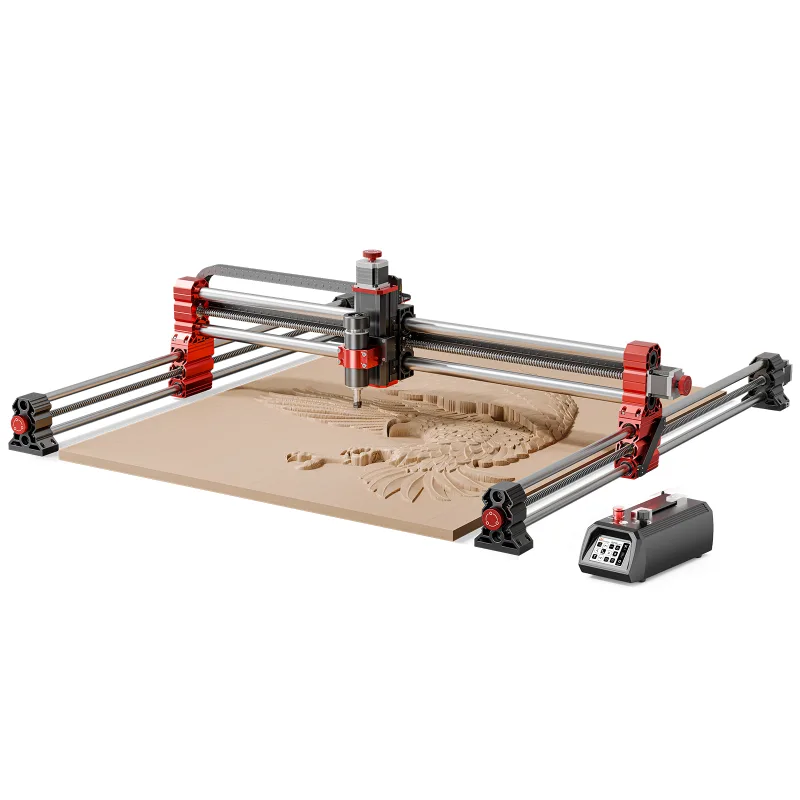

TwoTrees TTC-H40 CNC Router
TwoTrees
Best for: Woodworkers who want a 1 x 1m work area for signs, furniture parts and guitar bodies on a mid-range budget
Typical starting price
$1,699Editorial baseline for this machine
Overall score
Best current buying path
Where to buy
TwoTrees: $1,699 · checked Oct 2
- Shipping varies by retailer
- Check manufacturer site for availability
Affiliate link. We may earn a commission at no extra cost.
Quick verdict
The TTC-H40 is TwoTrees' large-format router with a 1000 x 1000 x 100mm working area, NEMA 23 steppers and a GRBL control box with a 3.5-inch touchscreen. X and Y run on trapezoidal lead screws and tube rails, Z on linear rails, and the base Advanced kit ships with a 500W brushless spindle rated 8000 to 30000 RPM. That is a lot of bed for $1,699, but the motion system is hobby-grade for that span, top speed is 1800mm/min, and the control box supply is only 216W. Treat it as a big wood and plastic router; for regular aluminum work or production feed rates, a rail and ball-screw machine is the better tool.
Who this fits best
Woodworkers who want a 1 x 1m work area for signs, furniture parts and guitar bodies on a mid-range budget
Buy this if
Woodworkers who want a 1 x 1m work area for signs, furniture parts and guitar bodies on a mid-range budget. Full 1000 x 1000mm cutting area for $1,699, large enough for signs, cabinet parts and guitar bodies.
Skip this if
Trapezoidal lead screws and tube rails over a 1m span limit stiffness and speed, max 1800mm/min, and control box power supply is rated 216W total, so the 500W spindle figure is a motor rating, not what you get at the cutter.
What else you still need
A sturdy bench or table around 1.3 x 1.3m, an MDF spoilboard and clamps, a dust shoe and shop vac or dust collector, and quarter-inch tooling if you move to the 800W trim router (Premium kit at $1,829). VCarve Pro adds about $630 if you buy it bundled.
Material reality check
Plywood, MDF, softwood and hardwood, acrylic and plastics are its home turf, at moderate depths of cut. Aluminum and brass are possible as light engraving and shallow pockets; stainless steel is listed by TwoTrees, but with the 216W supply and lead screws, treat that as marking only.
Better alternative if...
you want linear rails and ball screws on every axis for a full-size bed and can spend more. See Sienci AltMill MK2 4x4
Where it wins
- Full 1000 x 1000mm cutting area for $1,699, large enough for signs, cabinet parts and guitar bodies
- Standard GRBL, so Easel connects directly and Vectric, Fusion 360 and Carveco posts work
- Touchscreen control box runs jobs from a TF card without a PC
- Bundles with an 800W trim router and a 20W laser module, plus a VCarve Pro bundle option
- Linear rails on Z and NEMA 23 motors are a step up from TwoTrees' smaller hobby machines
Where it falls short
- Trapezoidal lead screws and tube rails over a 1m span limit stiffness and speed, max 1800mm/min
- Control box power supply is rated 216W total, so the 500W spindle figure is a motor rating, not what you get at the cutter
- Only 100mm of Z travel and 0.05mm rated accuracy, a wood router rather than a metal machine
- TwoTrees' own text claims ball screws and linear guides, while its comparison table and reviews show lead screws on X and Y
- Needs a strong, flat table at least 1.3 x 1.3m and a spoilboard you build yourself
Specifications
1000 × 1000 mm
10000 cm²
500W
500W BLDC4475 brushless DC spindle, ER11 collet (optional 800W, 2000W or 3000W AC trim router)
GRBL control box with 3.5-inch resistive touchscreen, USB and TF card offline running
38.3 kg
$1,699
premium
Full specification table
Relative to database
Benchmark Scores
Overall Score
Composite across 5 dimensions
Community Sentiment
We have not summarised owner feedback for the TwoTrees TTC-H40 CNC Router yet, so this section is intentionally left without claims. Check the sources for current owner discussions.
Community sentiment is aggregated from forums, Reddit, Discord, and manufacturer communities. Individual experiences may vary.
