Image: Sainsmart

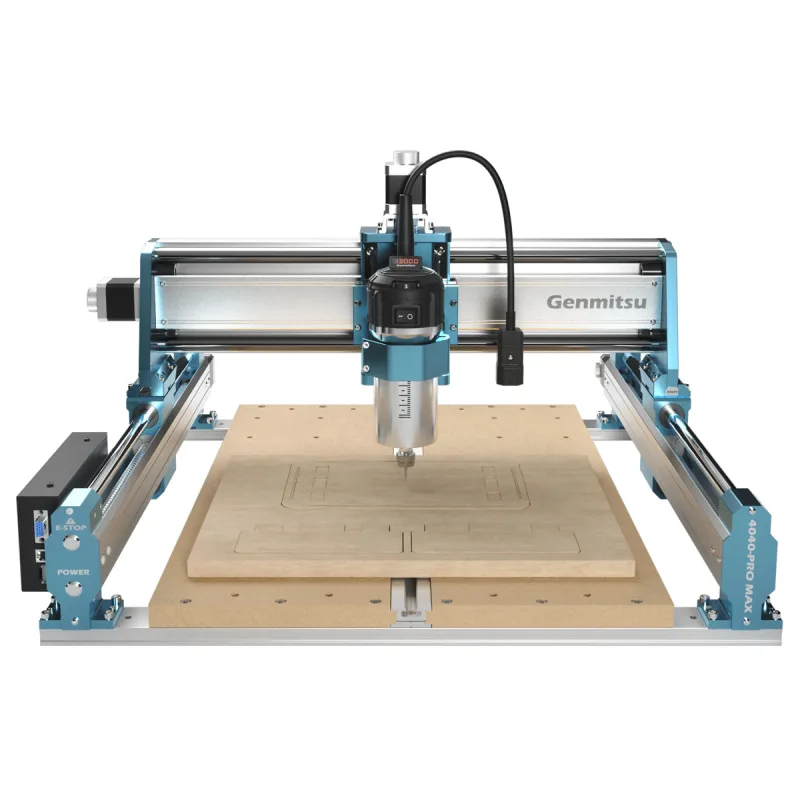

Sainsmart Genmitsu 4040-PRO MAX
Sainsmart
Best for: Hobbyists who want a 400x400 desktop machine that can carve hardwood and do light aluminium work without stepping up to NEMA23 hardware
Typical starting price
$849Maker's price, checked Oct 10
Overall score
Best current buying path
Where to buy
SainSmart: $849 · checked Oct 22
- Shipping varies by retailer
- Check manufacturer site for availability
Affiliate link. We may earn a commission at no extra cost.
Quick verdict
The 4040-PRO MAX adds an upgraded XZ assembly, a 65mm mount and a 710W trim router to Genmitsu's 4040 platform. It has 400 x 400 x 78mm of working travel, 100mm of gantry clearance and a listed 24.6kg net weight. Linear guides on X and Z and a center-supported MDF spoilboard are useful upgrades. The drive system still uses NEMA17 motors and lead screws, with a specified 2000 mm/min maximum speed. It suits woodworking and careful small-cutter aluminum work, but compare the complete package and work envelope with alternatives rather than assuming a spindle upgrade also increases feed capability.
Who this fits best
Hobbyists who want a 400x400 desktop machine that can carve hardwood and do light aluminium work without stepping up to NEMA23 hardware
Buy this if
Hobbyists who want a 400x400 desktop machine that can carve hardwood and do light aluminium work without stepping up to NEMA23 hardware. 710W trim router with ER11 collets instead of the small 775 motor on the older 4040 machines.
Skip this if
NEMA17 motors and a 2000 mm/min max speed keep it firmly in hobby territory, and lead screws on every axis, no ball screws at this price.
What else you still need
Budget for a dust shoe or vacuum setup, decent carbide end mills beyond the starter set, and CAM software (the VCarve Desktop bundle adds $300). The CTL4040 offline controller and the Wi-Fi module are sold separately if you want to run without a laptop tethered.
Material reality check
Wood, plastics, acrylic and PCB blanks are well within reach of the 710W router. Aluminium is possible with small single-flute cutters and shallow passes, but NEMA17 motors on lead screws limit feed and depth, so expect slow, careful metal work rather than real milling.
Better alternative if...

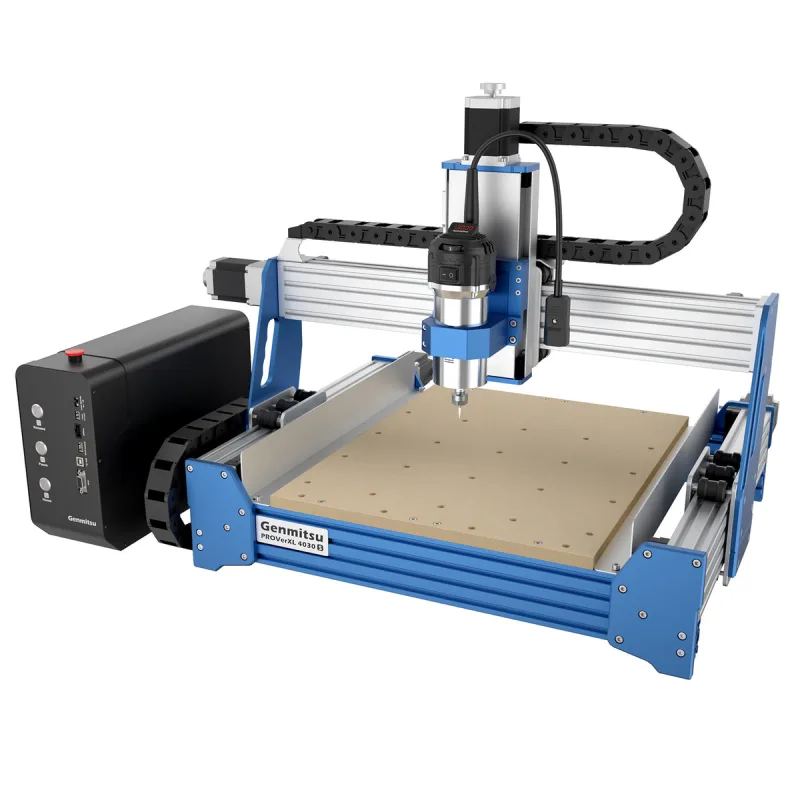

you can live with a 400 x 300 bed, the cheaper PROVerXL 4030S gives you NEMA23 motors, external drivers and much more Z travel with the same 710W router. See Sainsmart Genmitsu PROVerXL 4030S
Where it wins
- 710W trim router with ER11 collets instead of the small 775 motor on the older 4040 machines
- 100mm pass height under the gantry leaves room for thick stock and a 4th axis
- Linear guide rails on the X and Z axes stiffen the moving parts that take most of the cutting load
- T-track MDF spoilboard with an aluminum center support
- Semi-assembled, ships with Z-probe, limit switches, e-stop and clamps
Where it falls short
- NEMA17 motors and a 2000 mm/min max speed keep it firmly in hobby territory
- Lead screws on every axis, no ball screws at this price
- Only 78mm of actual Z travel despite the 100mm clearance headline
- Offline controller and Wi-Fi module are extra cost
- Running accuracy is quoted at only ±0.1mm
Specifications
400 × 400 mm
1600 cm²
710W
710W compact trim router with digital speed display, 65mm mount, ER11 collet
32-bit GRBL board with TB67S109 drivers, NEMA17 steppers, MPG and offline controller ports
24.6 kg
$849
mid range
Full specification table
Relative to database
Benchmark Scores
Overall Score
Composite across 5 dimensions
Community Sentiment
We have not summarised owner feedback for the Sainsmart Genmitsu 4040-PRO MAX yet, so this section is intentionally left without claims. Check the sources for current owner discussions.
Community sentiment is aggregated from forums, Reddit, Discord, and manufacturer communities. Individual experiences may vary.
