Best 4x4 and 4x8 CNC Routers (October 2026)
Large-format routers are for furniture parts, cabinetry, big signs and sheet goods. Above about one metre each way, gantry stiffness, drive system and the table underneath matter as much as the spindle.
Quick picks
Onefinity Gen 2 Elite Foreman
Score 87/100 · typical price $4,495
Check price at OnefinityRanked by our overall score. Shipping, a solid table and dust collection are significant extra costs at this size, so read the 'watch out for' notes on each pick.
How we rank: by our own scores for value, rigidity, precision, ease of use and capability (methodology). Prices are read from the stores every night. Some links earn us a commission, for example from SainSmart, TwoTrees, VEVOR and Amazon. That never changes a score or the order of a list (disclosure).
The 8 best, ranked
typical price $7,000
- Work area 1260 × 2508 × 203 mm
- Spindle 3000W 4HP Hiteco air-cooled VFD spindle, ER20, when selected; other...
- Weight 279 kg
- Frame Bolted aluminum extrusion and steel plates; profile rails, X/Y rack and pinion, Z ball scr
Best for: Shops needing full-sheet cutting with configurable motors and spindle power
Why we like it
- Full 4x8 foot work area handles entire sheet goods
- Profile rails with rack-and-pinion X/Y and a ball-screw Z axis
- Motor and spindle options suit different production workloads
Watch out for
- Configured machine cost depends on motors, spindle and accessories
- Budget separately for a computer, spoilboard and dust collection
Full review and specs · Compare with Sienci Labs AltMill 4x8

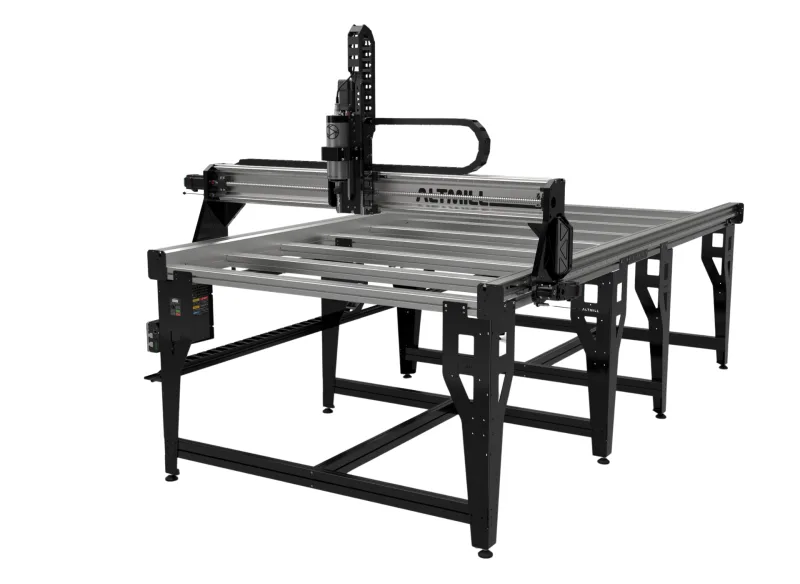

typical price $10,390
- Work area 1265 × 2640 × 210 mm
- Spindle 2200W 80 mm mount; optional 1.5 kW or 2.2 kW spindle, including a 2.2 kW...
- Weight 181.4 kg
- Frame Machined aluminium extrusion with HGR15 linear rails, ball screws on X and Z and rack and
Best for: Small shops needing full-sheet capacity and willing to provide the spindle, wasteboard and extraction
Why we like it
- Full 4 by 8 foot sheet capacity without tiling
- HGR15 industrial rails throughout
- Rack and pinion on Y, ball screws on X and Z
Watch out for
- Large floor footprint; approximately 181 kg before add-ons
- Spindle sold separately
Full review and specs · Compare with Sienci Labs AltMill MK2 4x4

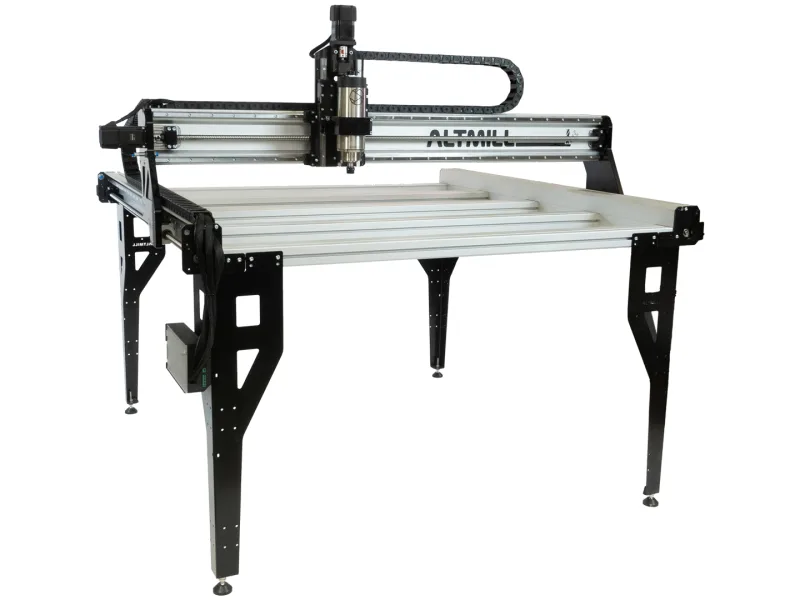

typical price $4,290
- Work area 1265 × 1251 × 174 mm
- Spindle 80 mm mount only; optional 1.5 kW, 2.2 kW or 2.2 kW ATC spindle...
- Weight n/a
- Frame Machined aluminium extrusion with HGR15 industrial linear rails on all axes and ball screw
Best for: The serious hobbyist or small shop stepping up from a belt machine who wants industrial motion components without industrial pricing
Why we like it
- HGR15 linear guides and ball screws on all three axes
- Closed-loop steppers with auto-correction catch lost steps
- gSender is free, actively developed, and genuinely good
Watch out for
- Spindle packages cost extra; automatic tool changing adds substantially more than a manual spindle kit
- Heavy, and assembly is a real project
Full review and specs · Compare with Avid CNC PRO4848 CNC Router
typical price $5,200
- Work area 1260 × 1260 × 203 mm
- Spindle 3000W Optional 4 HP Hiteco air-cooled VFD spindle; inclusion depends on...
- Weight 171 kg
- Frame Bolted aluminum extrusion and steel plate frame, profile linear rails, rack-and-pinion X/Y
Best for: Small shops and serious hobbyists who need industrial-grade capability for wood, aluminum, and composites
Why we like it
- Full 4x4 foot panel capacity with profile linear guides
- Bolted extrusion and steel plate construction allows assembly and later expansion
- Profile linear rails, rack-and-pinion X/Y and a ball-screw Z axis
Watch out for
- Large investment, with the total depending on motor and cutting packages
- Dust collection, tooling, workholding and a suitable computer add to the setup cost
Full review and specs · Compare with Avid CNC PRO6060 CNC Router
typical price $5,800
- Work area 1559 × 1559 × 203 mm
- Spindle 2200W Selectable Hiteco or AV Smart spindle package; confirm the...
- Weight 183 kg
- Frame Aluminum extrusion and steel plates; profile rails, rack-and-pinion X/Y and ball-screw Z
Best for: Small production shops and serious hobbyists who need a 5x5 foot industrial-grade CNC for wood and metal
Why we like it
- Massive 5x5 foot work area for large-format projects
- Modular aluminum extrusion and steel plate construction
- Profile rails with rack-and-pinion X/Y and ball-screw Z
Watch out for
- Configuration and accessories substantially affect the total cost
- Requires substantial workshop space and a planned installation
Full review and specs · Compare with Onefinity Gen 2 Elite Foreman

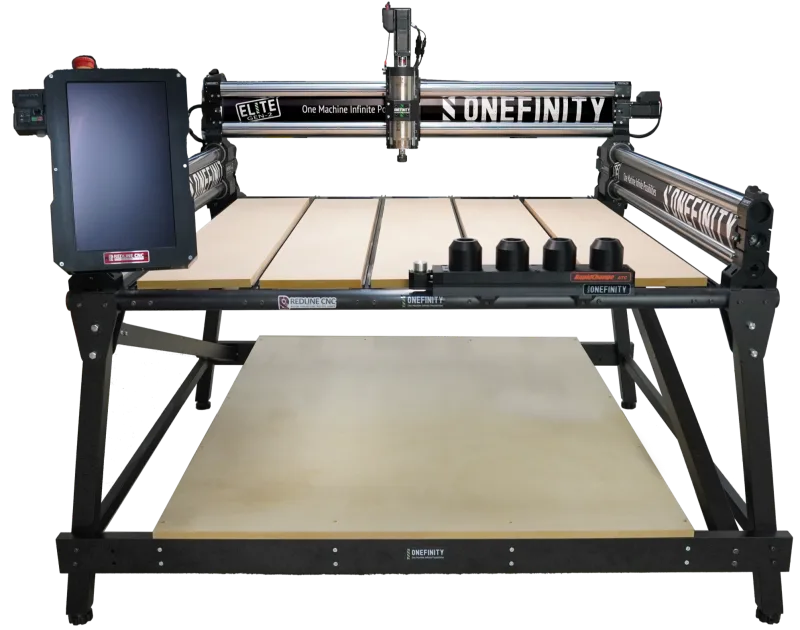

typical price $4,495
- Work area 1245 × 1248 × 165 mm
- Spindle 1500W Onefinity Redline plug-and-play spindle, 65mm or 80mm, sold separately
- Weight 64 kg
- Frame 60mm hardened steel X linear shafts and 50mm Y, with 16mm ball screws
Best for: Shops wanting a roughly four-foot-square cutting area with closed-loop motion
Why we like it
- About 49 inches square of cutting area; 4 x 8 sheets require tiling
- Closed-loop control with braking on Z
- Standalone operation with the optional Redline HMI
Watch out for
- Spindle not included
- Needs a large dedicated footprint
Full review and specs · Compare with Laguna Swift 4x8 CNC Router
from $14,495 at Laguna Tools, checked Oct 22
- Work area 1244.6 × 2463.8 × 152 mm
- Spindle 2200W 3 HP liquid-cooled spindle (included; brand not specified on...
- Weight 250 kg
- Frame Welded steel frame, linear guides, helical rack-and-pinion X/Y drive and ball-screw Z driv
Best for: Production woodshops that need a turnkey 4x8 CNC with an industrial spindle from a trusted woodworking brand
Why we like it
- Full 4x8 foot work area with industrial-grade spindle included
- Welded steel frame provides serious rigidity
- 3 HP liquid-cooled spindle supplied with the machine
Watch out for
- Plan freight delivery and unloading for an industrial steel-frame machine; confirm the actual shipment weight
- Very expensive at $7500+
Full review and specs · Compare with Carbide 3D Shapeoko 5.1 Pro 4x4
typical price $3,800
- Work area 1237 × 1237 × 155 mm
- Spindle 65 mm router or spindle mount; cutting motor purchased separately,...
- Weight n/a
- Frame Steel-reinforced aluminium extrusion frame, HG-15 linear rails and 16 mm ball screws on al
Best for: Furniture makers and small businesses who want ball-screw accuracy over a half-sheet bed with easy software
Why we like it
- Full 4 x 4 foot cutting area (1237 x 1237 mm) for half sheets and furniture parts
- Ball screws and HG-15 linear rails on all axes, not belts or V-wheels
- The 4x4 doubles Y capacity compared with the 4x2
Watch out for
- Router or spindle not included
- Needs a large, rigid support table or the optional leg kit
All 14 machines compared
| # | Machine | Price | Work area (mm) | Spindle | Overall | Value | Rigidity | Ease |
|---|---|---|---|---|---|---|---|---|
| 1 | Avid CNC PRO4896 CNC Router | $7,000 | 1260×2508 | 3000W | 90 | 52 | 95 | 20 |
| 2 | Sienci Labs AltMill 4x8 | $10,390 | 1265×2640 | 2200W | 89 | 62 | 85 | 72 |
| 3 | Sienci Labs AltMill MK2 4x4 | $4,290 | 1265×1251 | NoneW | 88 | 72 | 88 | 78 |
| 4 | Avid CNC PRO4848 CNC Router | $5,200 | 1260×1260 | 3000W | 88 | 55 | 95 | 25 |
| 5 | Avid CNC PRO6060 CNC Router | $5,800 | 1559×1559 | 2200W | 88 | 48 | 95 | 20 |
| 6 | Onefinity Gen 2 Elite Foreman | $4,495 | 1245×1248 | 1500W | 87 | 55 | 80 | 93 |
| 7 | Laguna Swift 4x8 CNC Router | $14,495 | 1244.6×2463.8 | 2200W | 84 | 52 | 88 | 55 |
| 8 | Carbide 3D Shapeoko 5.1 Pro 4x4 | $3,800 | 1237×1237 | NoneW | 83 | 66 | 72 | 87 |
| 9 | ShopBot PRS5 Alpha CNC Router | $31,127 | 2616×1245 | 1641W | 82 | 30 | 80 | 74 |
| 10 | Inventables X-Carve Pro 4x4 | $7,495 | 1219.2×1219.2 | 1500W | 68 | 40 | 70 | 92 |
| 11 | Sainsmart Genmitsu PROVerXL 4x4 | $3,599 | 1300×1300 | 710W | 66 | 54 | 60 | 64 |
| 12 | YoraHome SilverBack 1x1m CNC Router | $1,699 | 1000×1000 | 500W | 62 | 78 | 32 | 62 |
| 13 | OpenBuilds LEAD 1515 CNC Router | $1,100 | 1170×1250 | NoneW | 60 | 88 | 22 | 65 |
| 14 | TwoTrees TTC-H40 CNC Router | $1,699 | 1000×1000 | 500W | 57 | 64 | 33 | 64 |
Want to put two of these side by side? Use the compare tool or take the 6-question quiz.
Frequently asked questions
What is the best 4x4 or 4x8 CNC router?
On our scores it is the Avid CNC PRO4896 CNC Router (90/100, typical price $7,000). Shops needing full-sheet cutting with configurable motors and spindle power.
Do I need a 4x8 CNC?
Only if you regularly cut full sheets. A 4x4 handles half sheets and most furniture parts in a much smaller footprint, and many 4x4 machines can tile longer jobs.
What does a large CNC need besides the machine?
A flat, stiff table, a vacuum or clamping system, real dust collection and often a dedicated circuit for the spindle.
