End Mill Compression

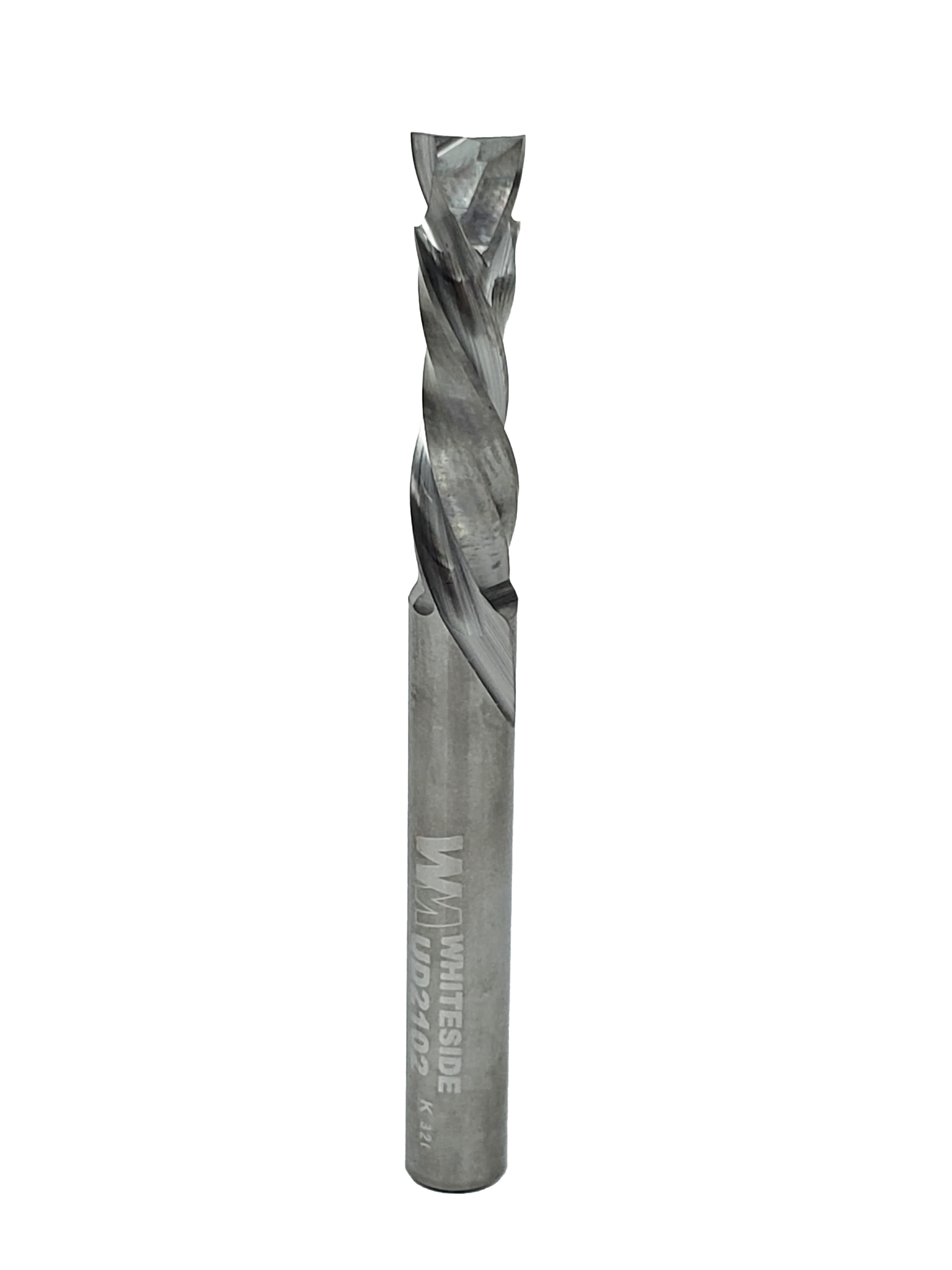

Whiteside UD2102 1/4" Compression Spiral
Whiteside
$42.95
Overview
The Whiteside UD2102 compression bit combines upcut and downcut geometry in one tool. The bottom portion is an upcut spiral that pulls chips up, while the top portion is a downcut spiral that pushes chips down. This results in clean, tear-free edges on both the top and bottom faces of sheet goods. It is the gold standard for cutting plywood and veneered panels.
Best for
Clean edges on both faces when cutting plywood, veneered panels, and laminates.
Specifications
Shank Diameter
1/4"
Cutting Diameter
1/4"
Flute Count
2
Material
Solid Carbide
Coating
Uncoated
Type
Compression
Material Compatibility
Plywood MDF Laminates Veneered panels Hardwood
Not rated for aluminum. Use a ZrN or DLC coated single-flute end mill for aluminum cutting.
Pros
- Clean finish on both top and bottom surfaces
- Made in USA premium quality
- Essential for plywood and laminate cutting
- Eliminates need for separate up/down passes
Cons
- Premium price point
- Must cut at least as deep as the transition point
- Not suitable for thin materials
- Overkill for non-laminated materials
