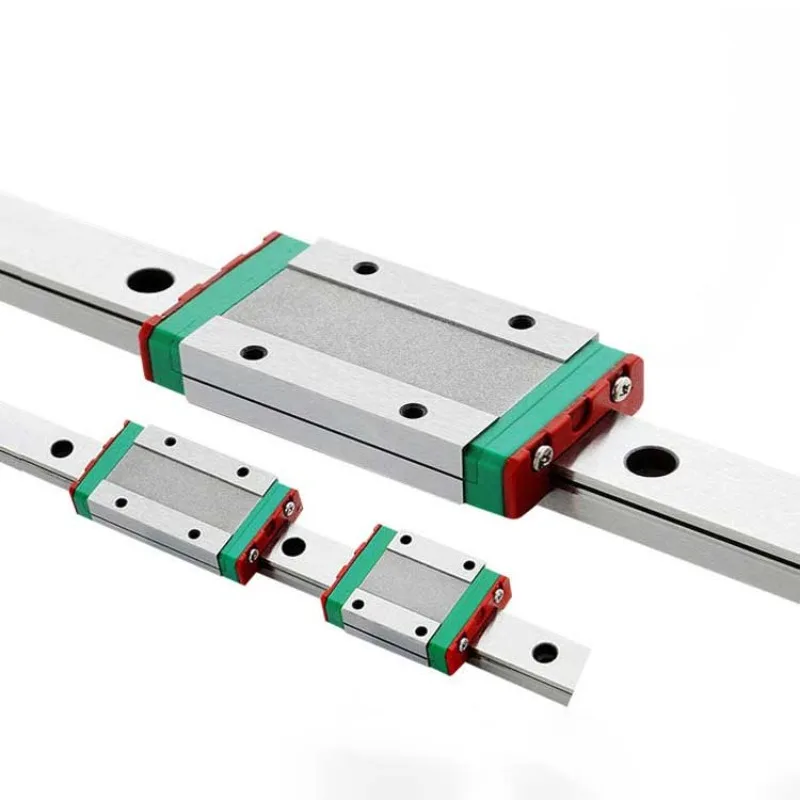

MGN9 vs MGN12 vs MGN15 Linear Rail Guide: Size Matters
You're sourcing linear guides. The abbreviations look random. Is MGN12 twice as good as MGN9? Is MGN15 overkill? Why is there a $200 difference between them?
Table of Contents
- The MGN Naming System
- MGN9: What It's Actually For
- MGN12: The Hobbyist Sweet Spot
- MGN15: When You Actually Need It
- Single vs Double Carriage Per Rail
- Preload Class (Critical Detail Most Buyers Miss)
- Chinese Clone Quality (Reality Check)
- Length Selection Guide
- Load Rating Comparison Chart
- Application Decision Table
- What We'd Buy
- Shop This Guide
- Related Articles
The MGN Naming System
HIWIN linear guides follow this pattern:
- MGN9: 9mm rail width; dynamic rating 1.86kN for C blocks or 2.55kN for H blocks
- MGN12: 12mm rail width; dynamic rating 2.84kN for C blocks or 3.72kN for H blocks
- MGN15: 15mm rail width; dynamic rating 4.61kN for C blocks or 6.37kN for H blocks
Dynamic load rating is the reference load for a specified rolling-fatigue life. It is not a maximum working load; calculate life for the actual equivalent load and duty cycle.
Also check static load and moment ratings, especially for shock loads and tool overhang. Apply the appropriate design safety factors; do not assume the catalogue rating includes your safety margin.
Quick context: Torque divided by lever arm gives force. For 2.5Nm and 0.4m, that is 6.25N, not 6.25kN. A real axis needs drive-force and carriage-moment calculations; motor torque alone cannot size its guides.
MGN9: What It's Actually For
MGN9 is a compact miniature guide size, suited to applications such as:
- 3D printers (FDM/SLA) — perfect for the extruder or build plate
- Laser cutters (CO₂, 40W–100W) — lightweight optics head
- Engravers and light plotters
Small blocks have limited moment capacity. Size a router axis for tool-tip stiffness and overhang as well as load rating.
MGN12: The Hobbyist Sweet Spot
MGN12 uses a 12mm-wide rail. It can suit compact mechanisms where its load, moment and stiffness ratings meet the design:
- LowRider 4 Z guides, using the specified MGN12H assemblies
- Upgraded 3018 machines
- Steel frame hobby builds under 800mm
Check the load and moment at each block, including spindle overhang and cutting forces. Spindle mass, gantry length and feed rate do not establish a fixed safety margin.
HIWIN MGN12H dimensions: 27mm block width, 45.4mm block length and 13mm installed assembly height. Check the C or H variant, rail hole pattern and supplier drawing before ordering.
Preload matters: HIWIN MG uses ZF, Z0 and Z1 classes. Z1 is light preload; C0 is not its preload designation. Ask a clone supplier for its own clearance specification.
MGN15: When You Actually Need It
MGN15 uses a 15mm-wide rail and offers higher block and moment capacity than MGN9 or MGN12. Consider it when:
- The calculated spindle-overhang moment exceeds the smaller block's design margin
- Cutting forces or required tool-tip stiffness justify larger guides
- The moving assembly and machining loads call for greater capacity
For a light mechanism, smaller guides may be sufficient. For a router, stiffness and moment capacity can justify larger guides even when direct loads are modest.
Cost is high: $40–80 per carriage, $80–150 per rail meter. For a 3-axis router, that's $500–800 just for rails and carriages. For comparison, MGN12 is $150–250 for the same machine.
For a Z axis, evaluate the spindle's overhang, rail spacing and block spacing. Extra guide capacity can help, but spindle weight alone does not choose the size.
Single vs Double Carriage Per Rail
Two blocks spaced apart on a rail can resist an overhung moment more effectively than one. Choose the arrangement from the carriage geometry and loads, not rail length alone.
- Single carriage: Suitable when its force, moment and stiffness limits meet the design.
- Double carriage: Useful where block spacing is needed to resist moments and improve stiffness.
Block size, block spacing and rail spacing all affect this decision. Support the rail continuously on a sufficiently stiff mounting structure.
Preload Class (Critical Detail Most Buyers Miss)
HIWIN's MG series uses these clearance and preload classes; other makers may use different codes:
- ZF: Light clearance
- Z0: Very light preload class
- Z1: Light preload
Do not infer visible looseness from a Z0 marking. Verify assembled play and the supplier's specified clearance or preload.
Light preload can improve stiffness, but requires suitable alignment and increases rolling resistance.
When ordering: Specify the exact rail/block family and supplier-defined preload. For HIWIN MG, ask about Z1 where light preload is needed; verify clone specifications independently.
Chinese Clone Quality (Reality Check)
Genuine HIWIN and other makers' miniature guides have different prices and quality controls. A listing that says "HIWIN compatible" does not establish licensed manufacture.
Are they good? Yes, with caveats:
- Choose a supplier with drawings, traceable specifications and a workable return policy
- Verify the manufacturer's actual clearance or preload class
- Check material and hardness against that maker's guide specification
- Inspect the rail and block for corrosion, damage and rough travel after installation and lubrication
Length Selection Guide
Rail length must cover required travel, the full block-group length and end clearances.
For one MGN12H block, the 45.4mm block length already exceeds the suggested allowance. Add the whole moving block envelope and end-stop clearance to the required travel.
MPCNC does not use MGN rails as standard. For an MGN retrofit, determine rail lengths from the actual carriage layout and required travel before buying.
Load Rating Comparison Chart
Application Decision Table
| Machine Type | Rail Size | Single/Double | Notes |
|---|---|---|---|
| 3018 or smaller (<300mm) | MGN9 | Single | Check block moments and mounting stiffness |
| MPCNC 500mm | Bearings on steel tubes | Stock printed bearing assemblies | Follow the Primo parts list |
| Hobby router 600mm | MGN12 | Double on gantry | Verify spacing, moments and tool-tip stiffness |
| Large router 800mm | MGN12 or MGN15 | Double | Select by loads and stiffness, not material alone |
| Production aluminum | Size by engineering calculation; consider HG guides | Double | Verify complete machine stiffness |
What We'd Buy
For an MPCNC: Follow the stock steel-tube and bearing design. For an MGN-based custom router, select block size, preload and spacing from loads, mounting geometry and required stiffness.
For larger routers or regular aluminum work: Consider full-size HG guides as well as miniature MGN options. Select the complete rail/block arrangement using load, moment, life and stiffness requirements.
MGN9: Skip it unless you're retrofitting a laser cutter or printer.
