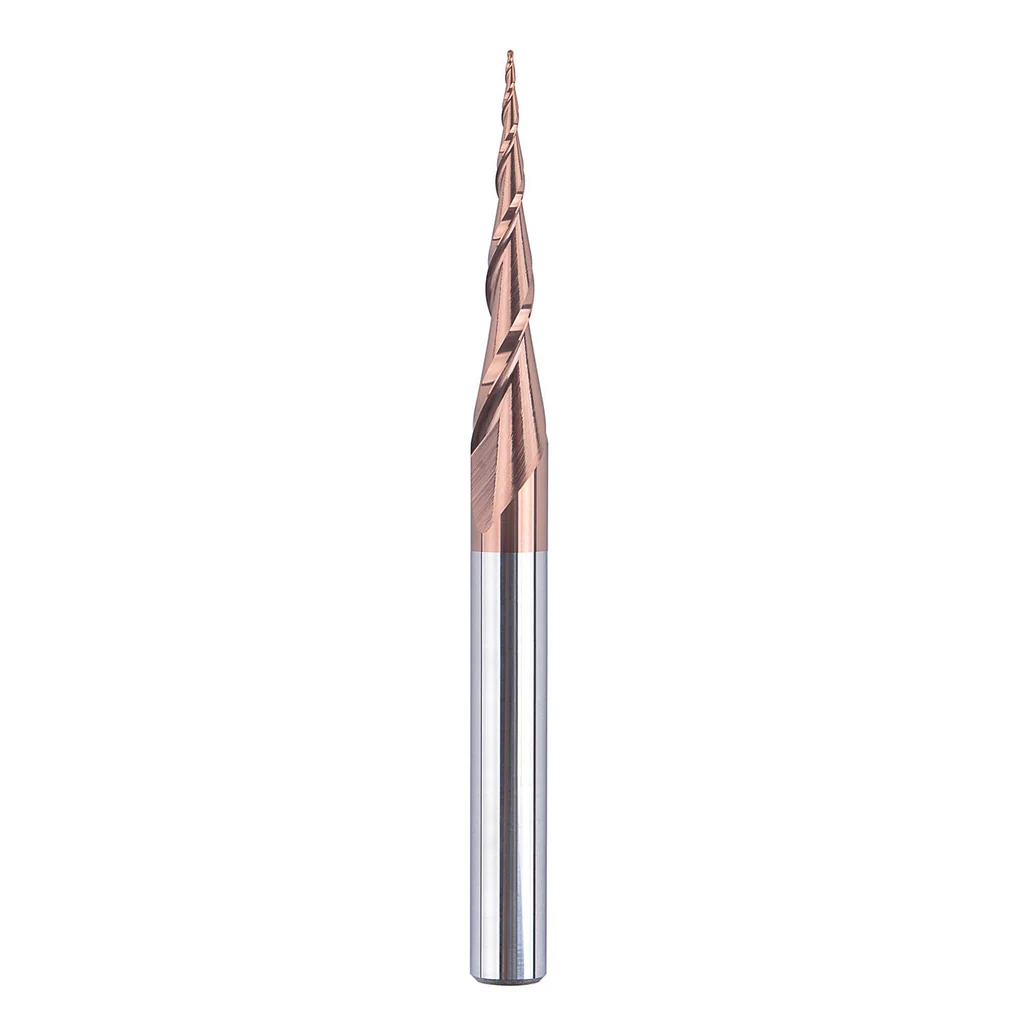

SpeTool 1/8" Tapered Ball Nose (1/4" Shank)
End Mill Tapered Ball Nose

SpeTool 1/8" Tapered Ball Nose (1/4" Shank)

SpeTool

$10.99

Overview

The tapered ball nose combines the fine detail of a 1/8-inch tip with the strength of a 1/4-inch shank through a gradual taper. This design is significantly stronger than a straight 1/8-inch bit while still providing fine detail in 3D carving. Ideal for deep relief carvings where a straight 1/8-inch bit would be too fragile.

Best for

3D carving with extra strength from the tapered profile.

Specifications

Shank Diameter

1/4"

Cutting Diameter

1/8" tip

Flute Count

2

Material

Solid Carbide

Coating

Uncoated

Type

Tapered Ball Nose

Material Compatibility

Wood MDF Foam Wax Soft plastics

Not rated for aluminum. Use a ZrN or DLC coated single-flute end mill for aluminum cutting.

Pros

  • Stronger than straight 1/8" ball nose
  • Fine detail with 1/4" shank rigidity
  • Great for deep 3D relief work
  • Reduced risk of breakage

Cons

  • Taper limits accessibility in tight areas
  • Not a true 1/8" diameter through full length
  • More expensive than straight ball nose
  • CAM software must account for taper
